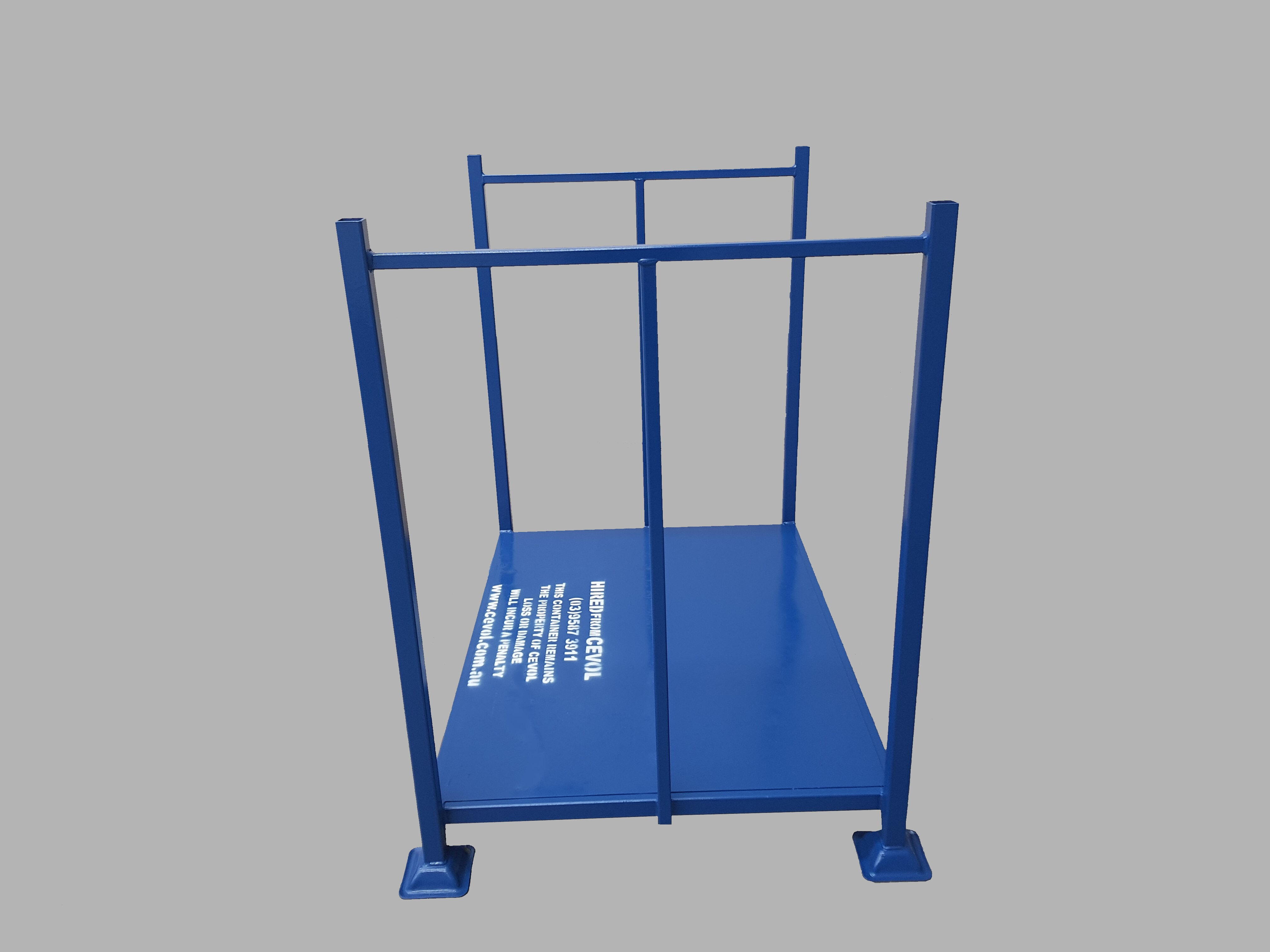

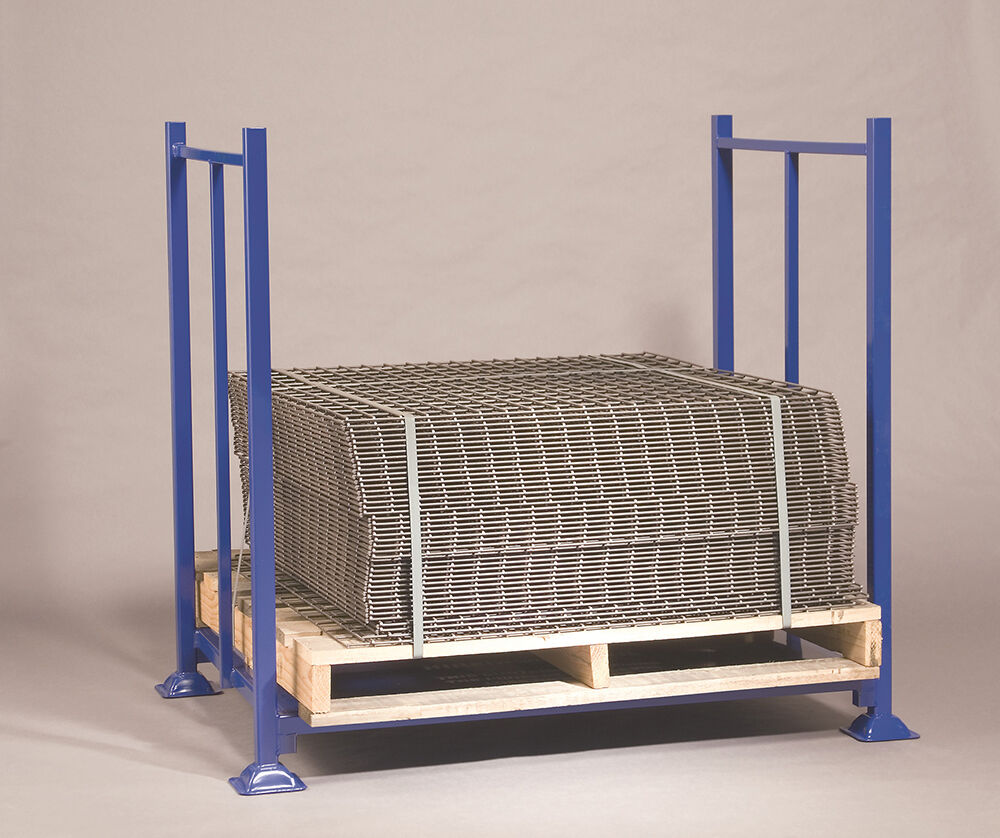

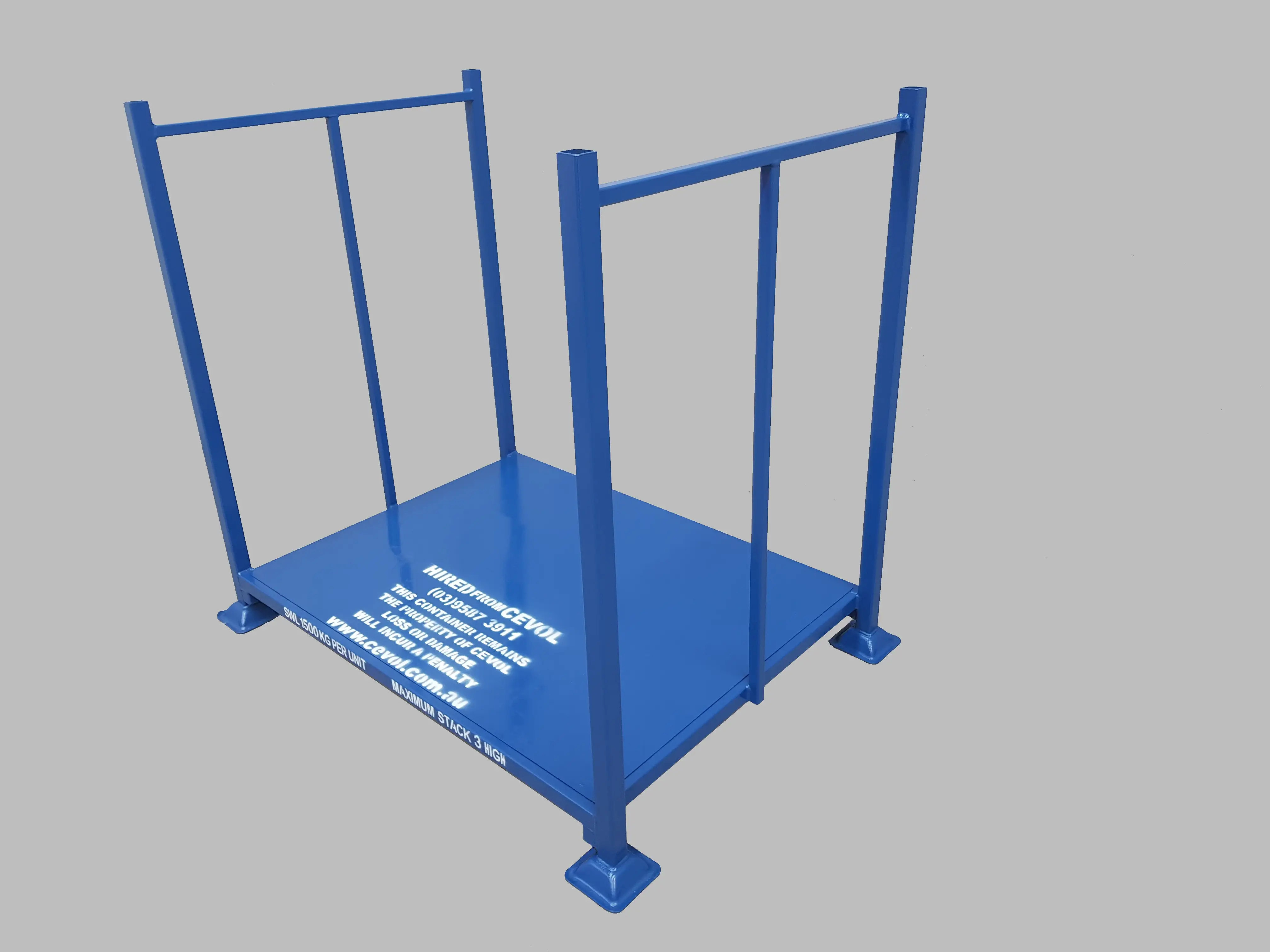

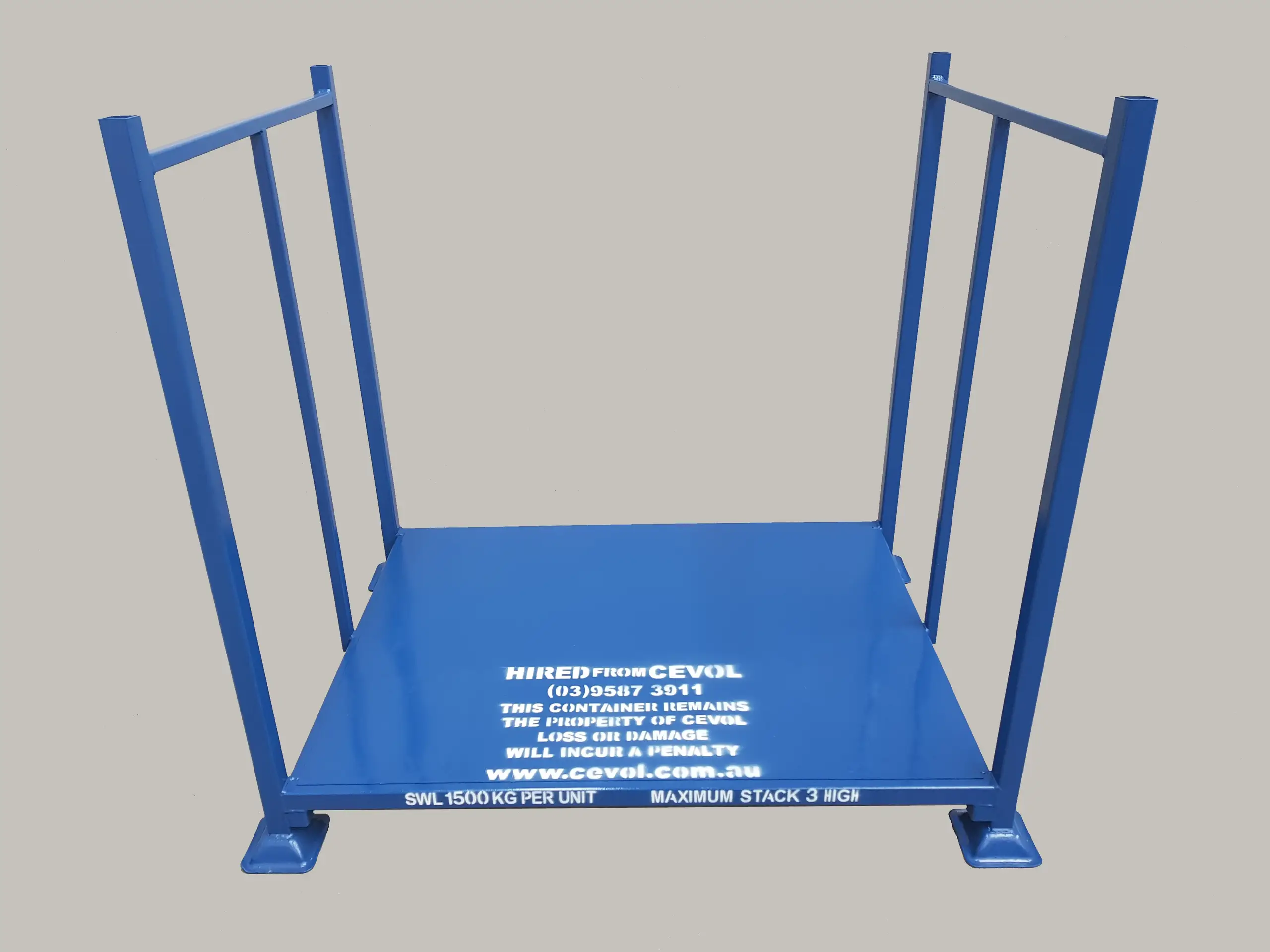

Open pallet with fixed end frames for storing wooden pallets

Very rugged construction.

Specifically for storage of loaded wooden pallets.

Can be stacked on top of each other and avoid damage to product.

Can be stacked and shifted as necessary.

Fork entry on all sides.

Product Manual
Frequently Asked Questions?
Specifications
Base Dimensions
1232 x 927
Usable Space
1232 x 927
Outside Feet
1405 x 1020
Overall Height
1254
Inside Height
1060
Under Base
100
Cubic Capacity
1.21m3
Approx. Mass
62kg
Design Specifications
Rated Capacity (NATA) Certified
1500kg per unit
Stacking Fully Loaded
3 high, static flat
Forking Fully Loaded
1 high from any side
Trucking Fully Loaded
2 high

Stillage Safety Assessment

Before using any stillage the operator must check that:
  • Pallet feet are not bent or broken
  • Stillage Base is in good condition
  • Posts are not damaged and that stillage can be stacked or stacked onto

General Loading & Trucking of Stillage

  • Always evenly distribute the loading of product into the stillage as best as possible
  • When stacking stillages, make sure the stillage has interlocked properly before removing the forklift
  • Avoid having heavy loads on top of the stack
  • Open ended stillage. Recommend securing product to stillage before transporting
  • Pallet has no fork tyne guides and can slide around on fork

Stillage Damage & Repairs

  • Damaged stillages should be assessed and if deemed to be unsafe, removed from circulation
  • Any time a stillage is removed from circulation, it should be reported to the relevant supervisor
  • Damaged or unsafe stillages are to be returned to Cevol Industries for proper assessment or repair

Operators Guide

Operators are not to exceed any of the design specifications listed above.
Each stillage hired out by Cevol Industries is in a safe usable condition, stenciled with the maximum capacity and stacking height.
Operators are to report any damaged stillage to their supervisor for assessment or return to Cevol Industries.
