BMI Bulk Steel Mesh Pallet & Bulk Sheet Stillage with half drop gate

BM.2

Back

Enquire
Hire

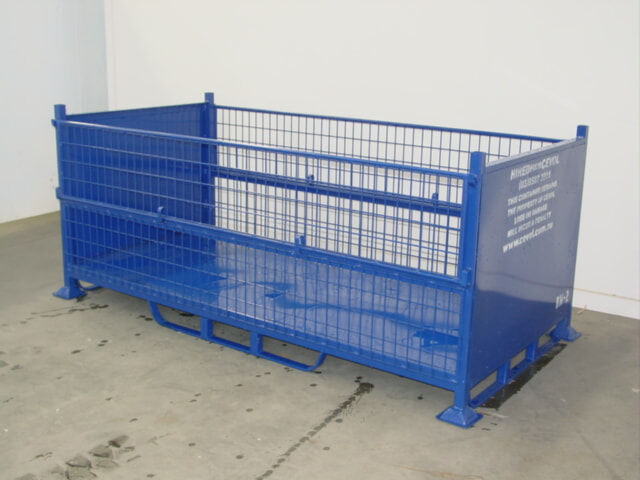

Mesh Pallet with 2 half drop gates and sheet ends

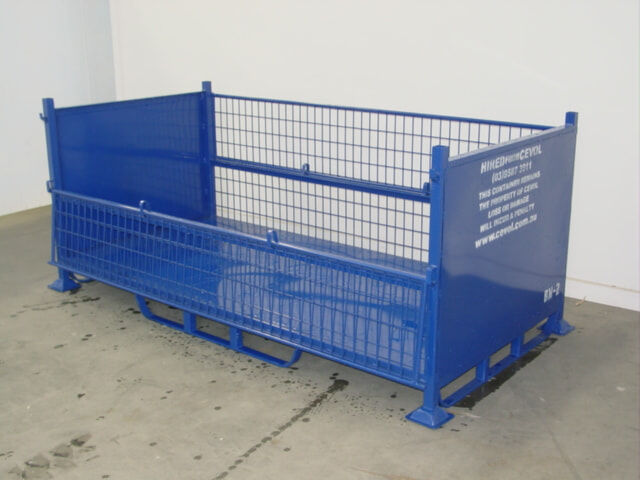

Fixed post pallet with 2 half drop gates.

Designed to make fullest use of legal space on tray trucks.

Can be made with a lockable security lid.

Can be stacked 3 high.

Product Manual
Specifications
Base Dimensions
2200 x 1061
Usable Space
2200 x 980
Outside Feet
2292 x 1158
Overall Height
940
Inside Height
725
Under Base
100
Cubic Capacity
1.69m3
Approx. Mass
165kg
Design Specifications
Rated Capacity (NATA) Certified
1000 kg per unit stacked 5 high

Stillage Damage & Repairs

  • Damaged stillages should be assessed and if deemed to be unsafe, removed from circulation
  • Any time a stillage is removed from circulation, it should be reported to the relevant supervisor
  • Damaged or unsafe stillages are to be returned to Cevol Industries for proper assessment or repair

Operators Guide

Operators are not to exceed any of the design specifications listed above.
Each stillage hired out by Cevol Industries is in a safe usable condition, stenciled with the maximum capacity and stacking height.
Operators are to report any damaged stillage to their supervisor for assessment or return to Cevol Industries.
