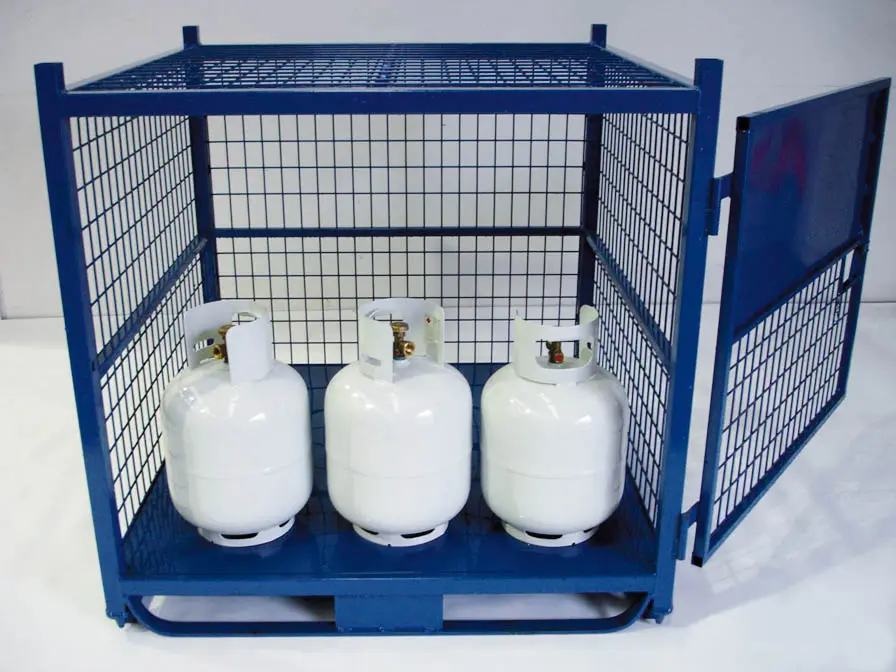

Mesh Pallet with 1 barn door gate with fixed mesh lid

Rugged construction

Fork entry all sides

Can be stored in racking

Fixed roof

May be used as security container

One barn door - lockable

Gates may be removed when loading

Provision for one shelf

Product Manual
Frequently Asked Questions?
Specifications
Base Dimensions
1152 x 1152
Usable Space
1136 x 1136
Outside Feet
1167 x 1167
Overall Height
1025
Inside Height
910
Under Base
100
Cubic Capacity
1.2m3
Approx. Mass
125kg
Design Specifications
Rated Capacity (NATA) Certified
1000kg per unit
Stacking Fully Loaded
4 high, static flat
Forking Fully Loaded
1 high from any side
Trucking Fully Loaded
2 high

Stillage Safety Assessment

Before using any stillage the operator must check that:
  • Stacking spigots are not bent or broken
  • Rack runners are in safe usable condition
  • Stillage base is in good condition
  • Posts are not damaged and that stillage can be stacked or stacked onto
  • Gates close and lock properly

General Loading & Trucking of Stillage

  • Always evenly distribute the loading of product into the stillage as best as possible
  • When stacking stillages, make sure the stillage has interlocked properly before removing the forklift
  • Avoid having heavy loads on top of the stack

Stillage Damage & Repairs

  • Damaged stillages should be assessed and if deemed to be unsafe, removed from circulation
  • Any time a stillage is removed from circulation, it should be reported to the relevant supervisor
  • Damaged or unsafe stillages are to be returned to Cevol Industries for proper assessment or repair

Operators Guide

Operators are not to exceed any of the design specifications listed above.
Each stillage hired out by Cevol Industries is in a safe usable condition, stenciled with the maximum capacity and stacking height.
Operators are to report any damaged stillage to their supervisor for assessment or return to Cevol Industries.
