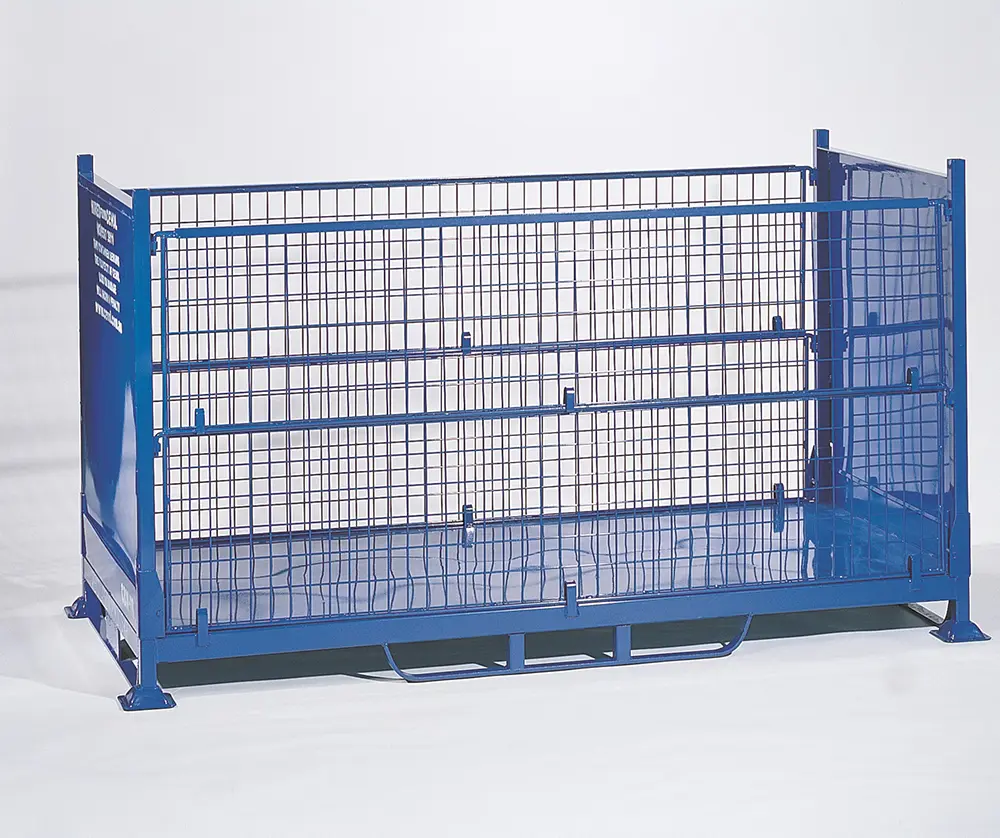

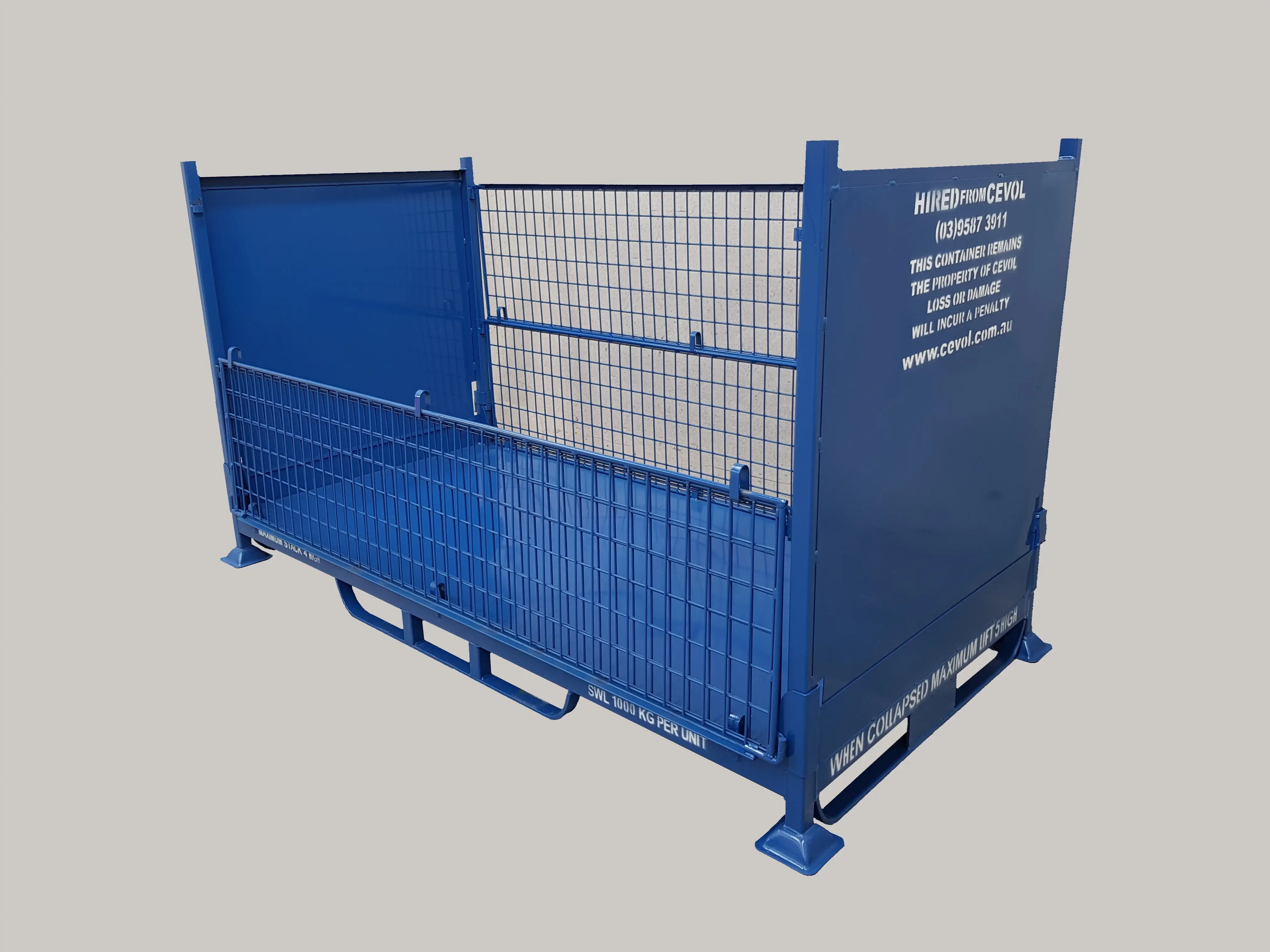

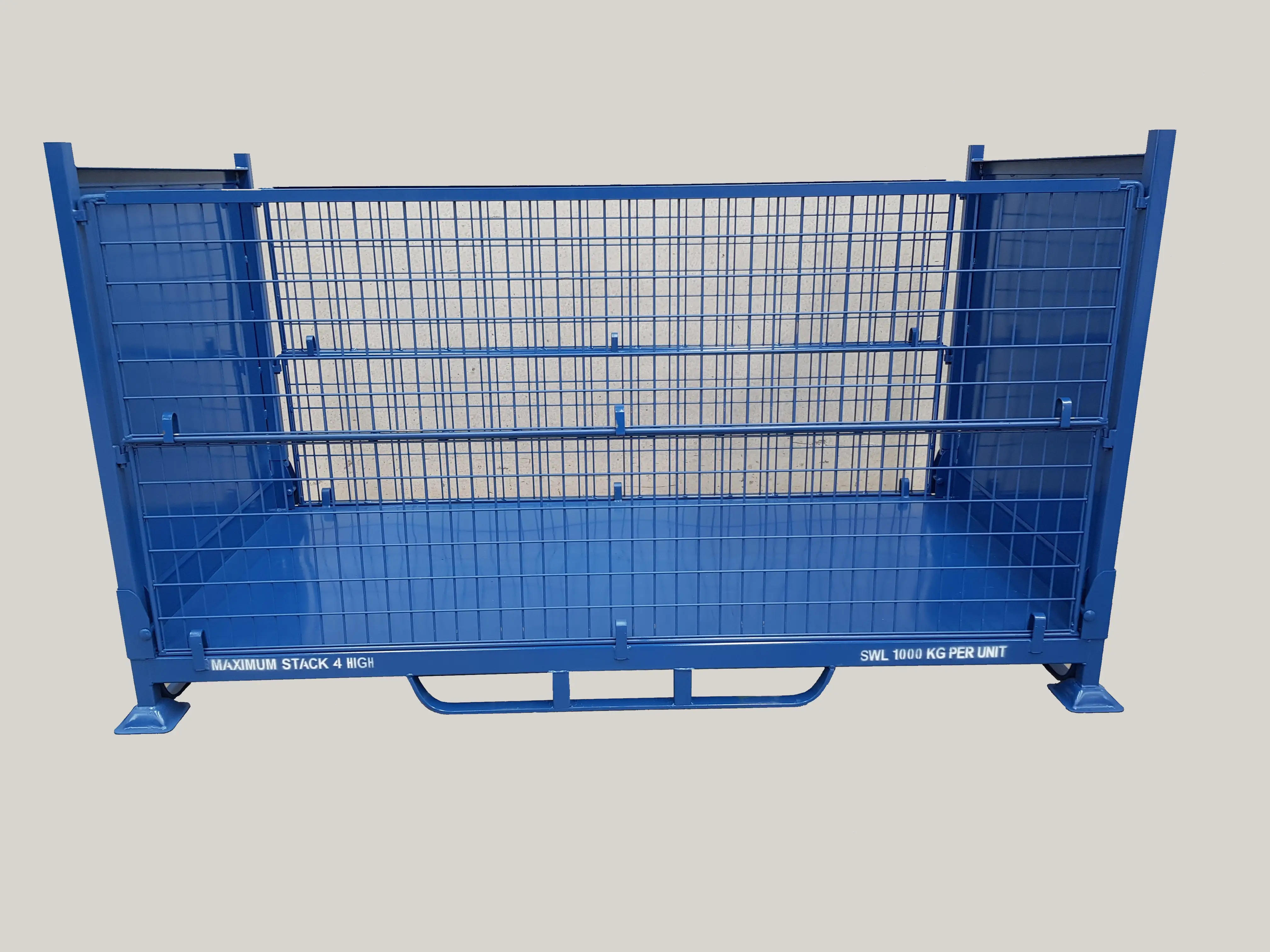

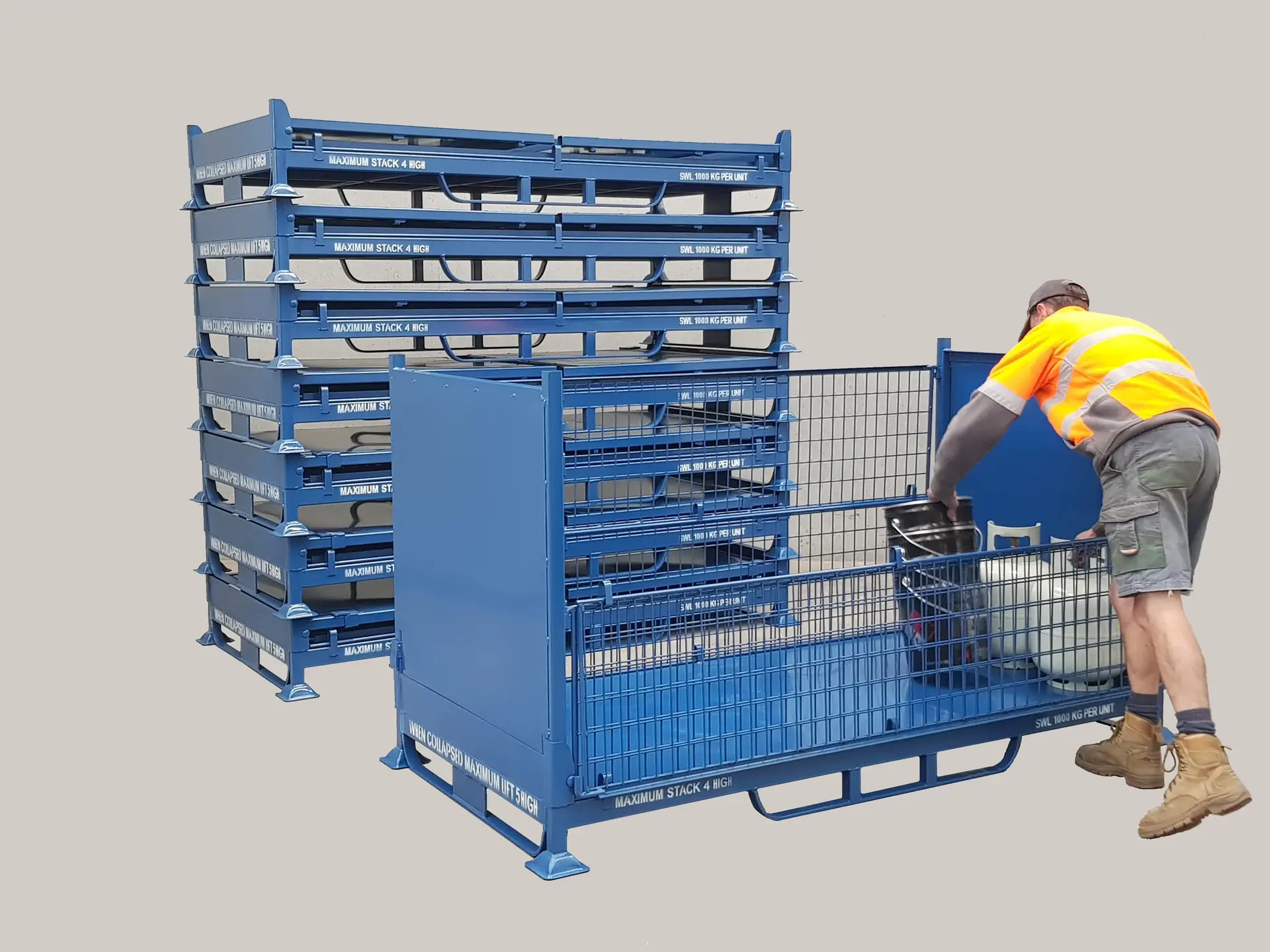

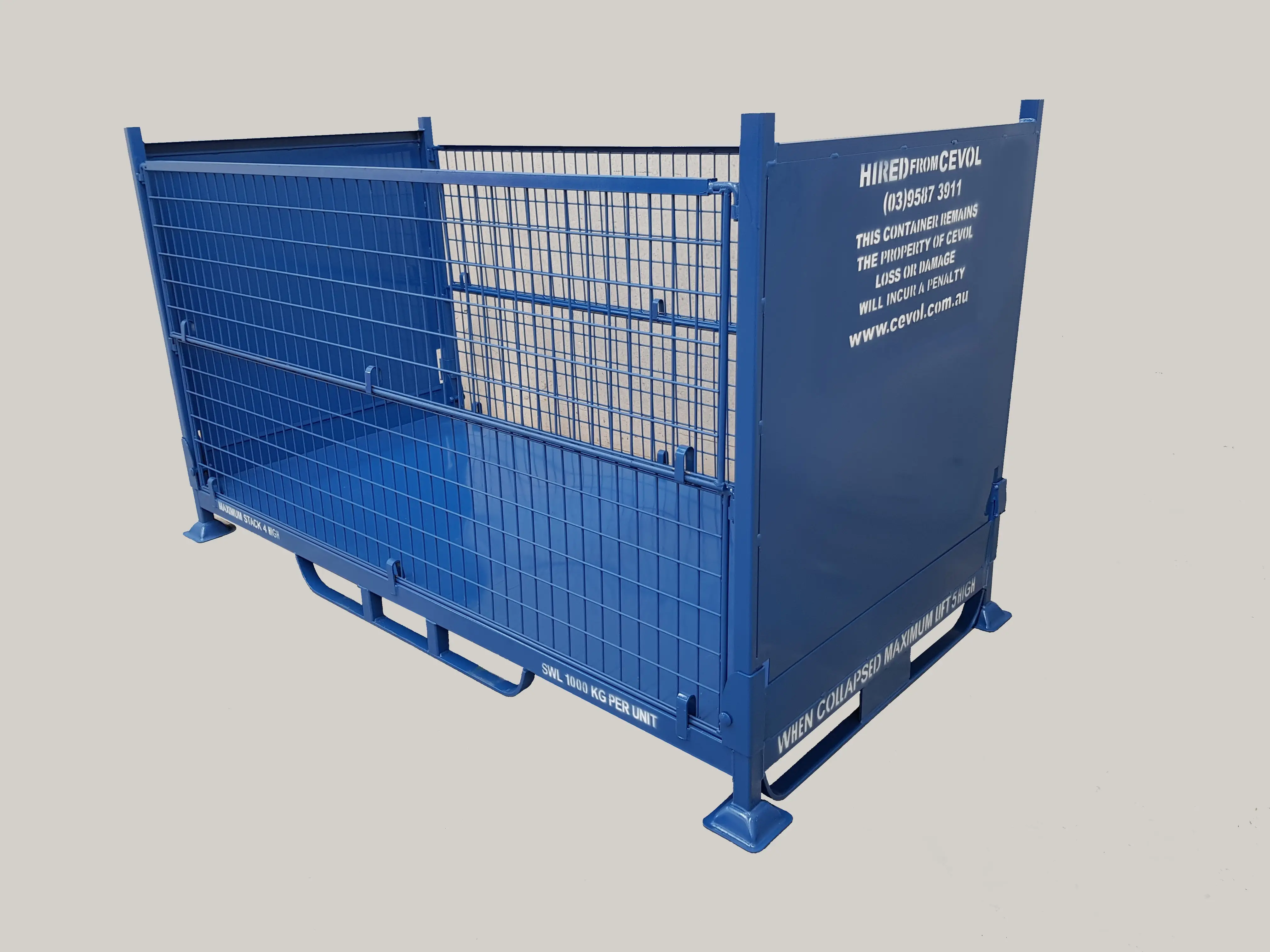

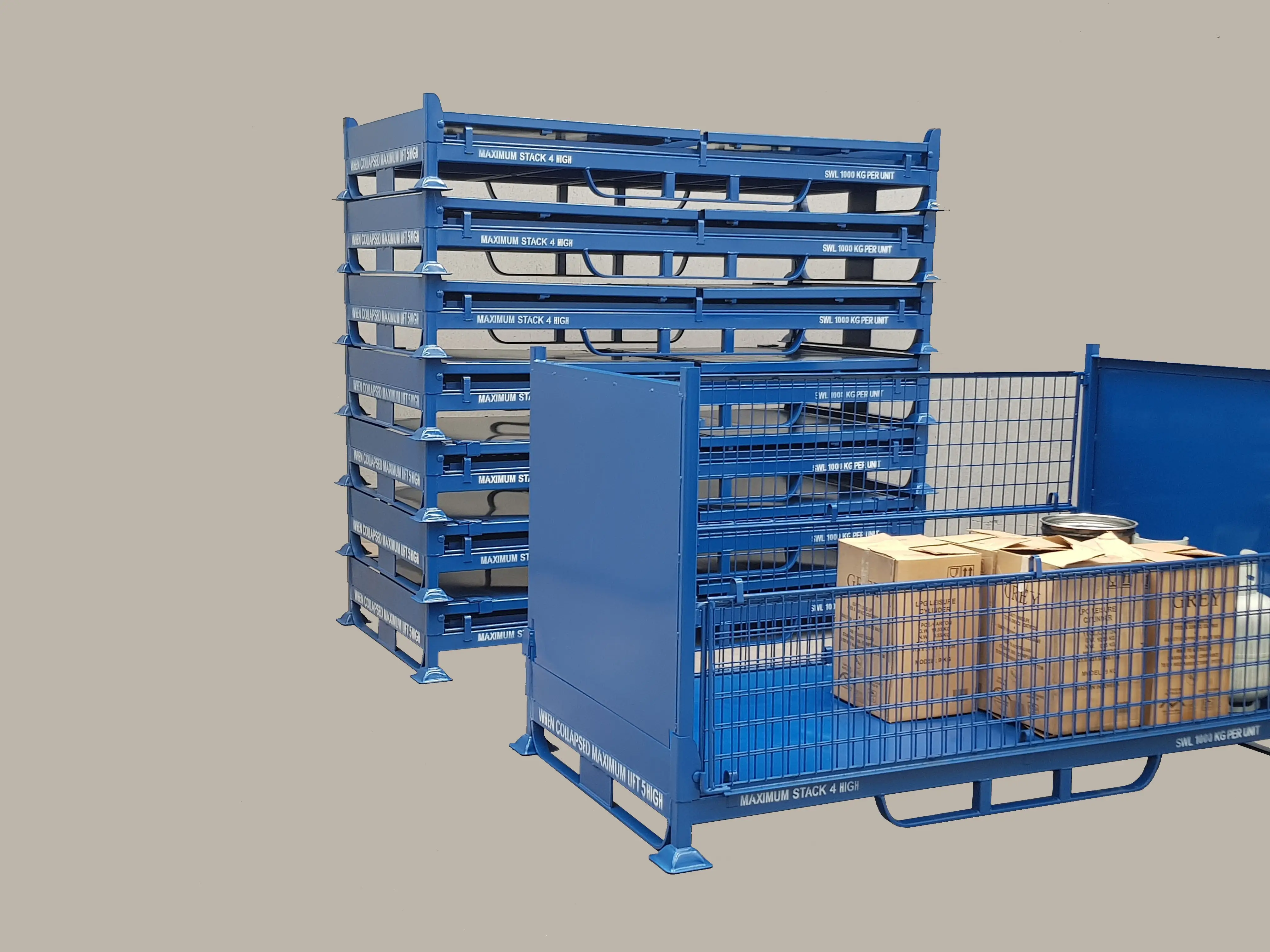

Folding Bulk Mesh Pallet & Folding Bulk Sheet Pallet with half drop front & back gates

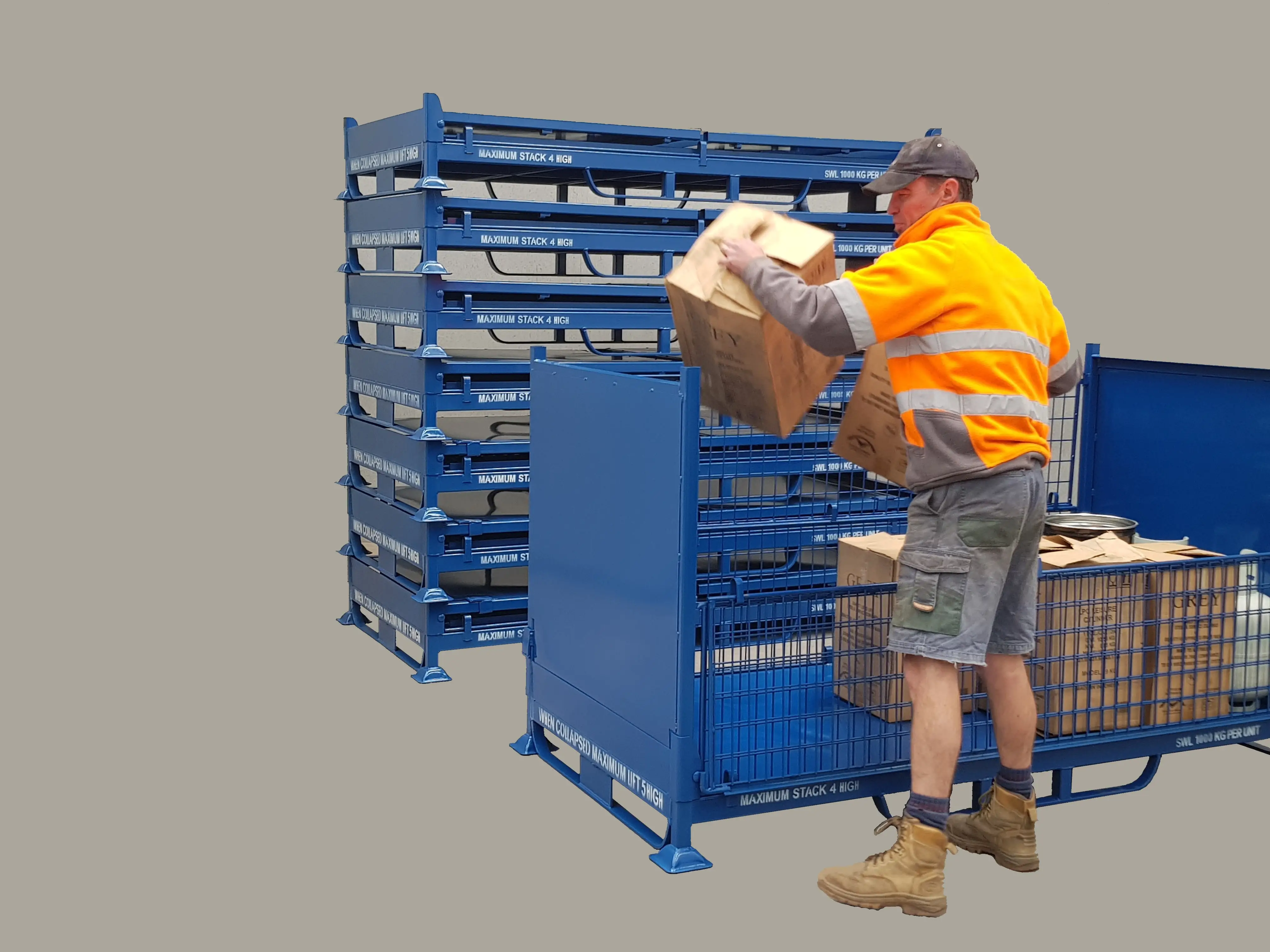

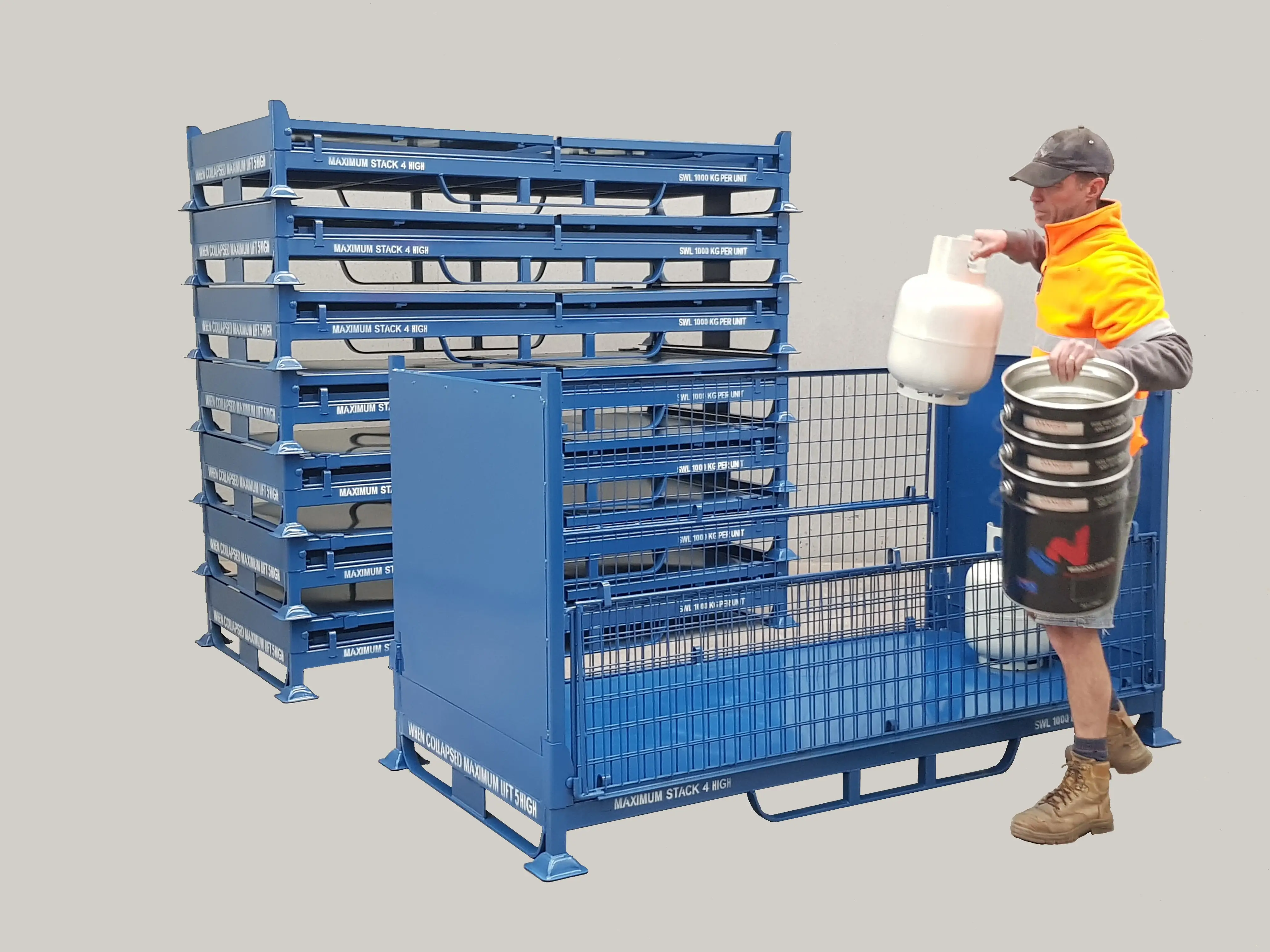

Folding pallet offering bulk storage and visual product identification. Four folded, equals one built up.  Sides are not removable, therefore cannot be lost.  Can also be made with a lockable security lid pallets are interstackable.

Product Manual
Frequently Asked Questions?
Product video
Specifications
Base Dimensions
2200 x 1061
Usable Space
2180 x 980
Outside Feet
2292 x 1158
Overall Height
1265
Inside Height
1050

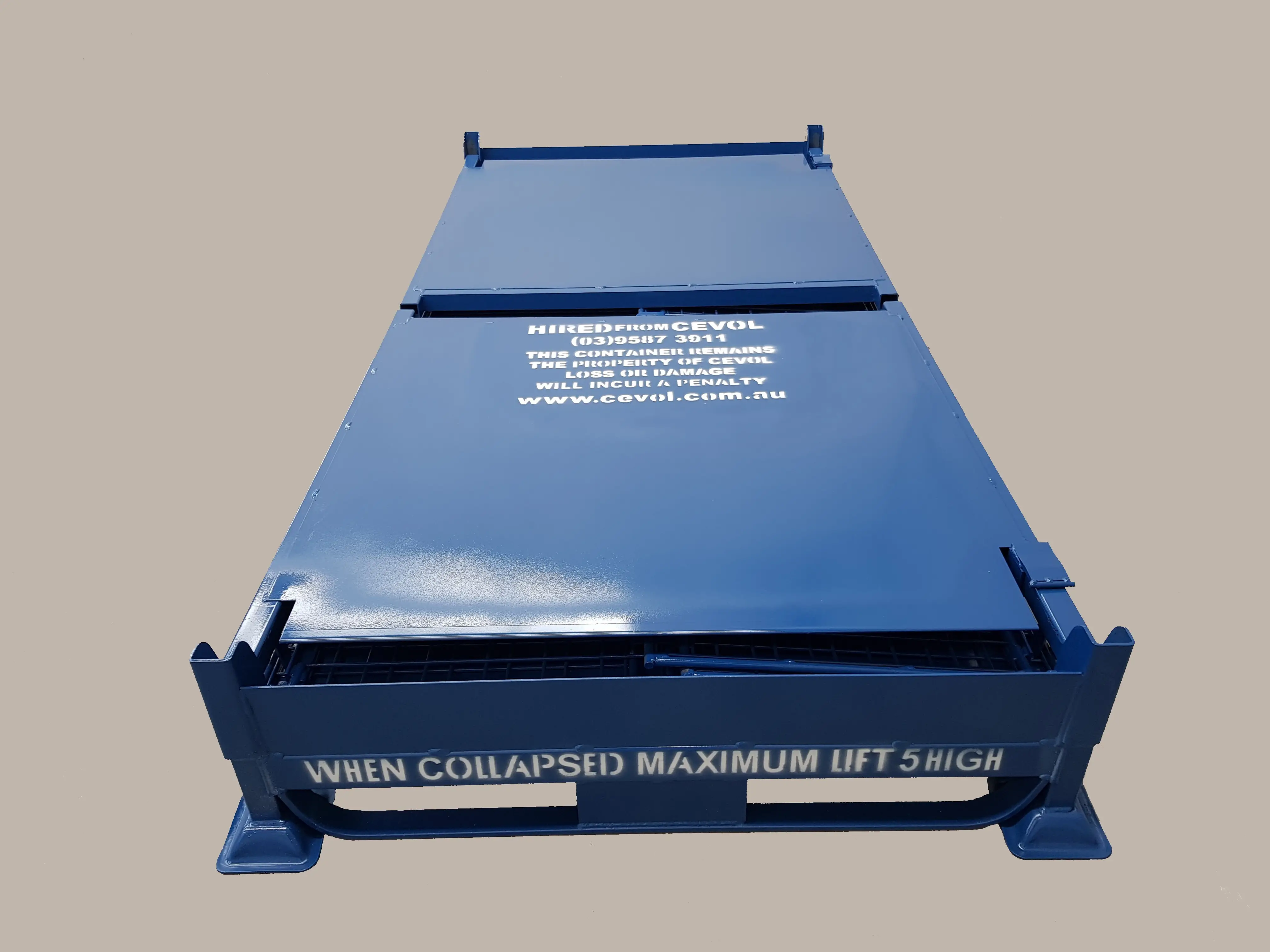

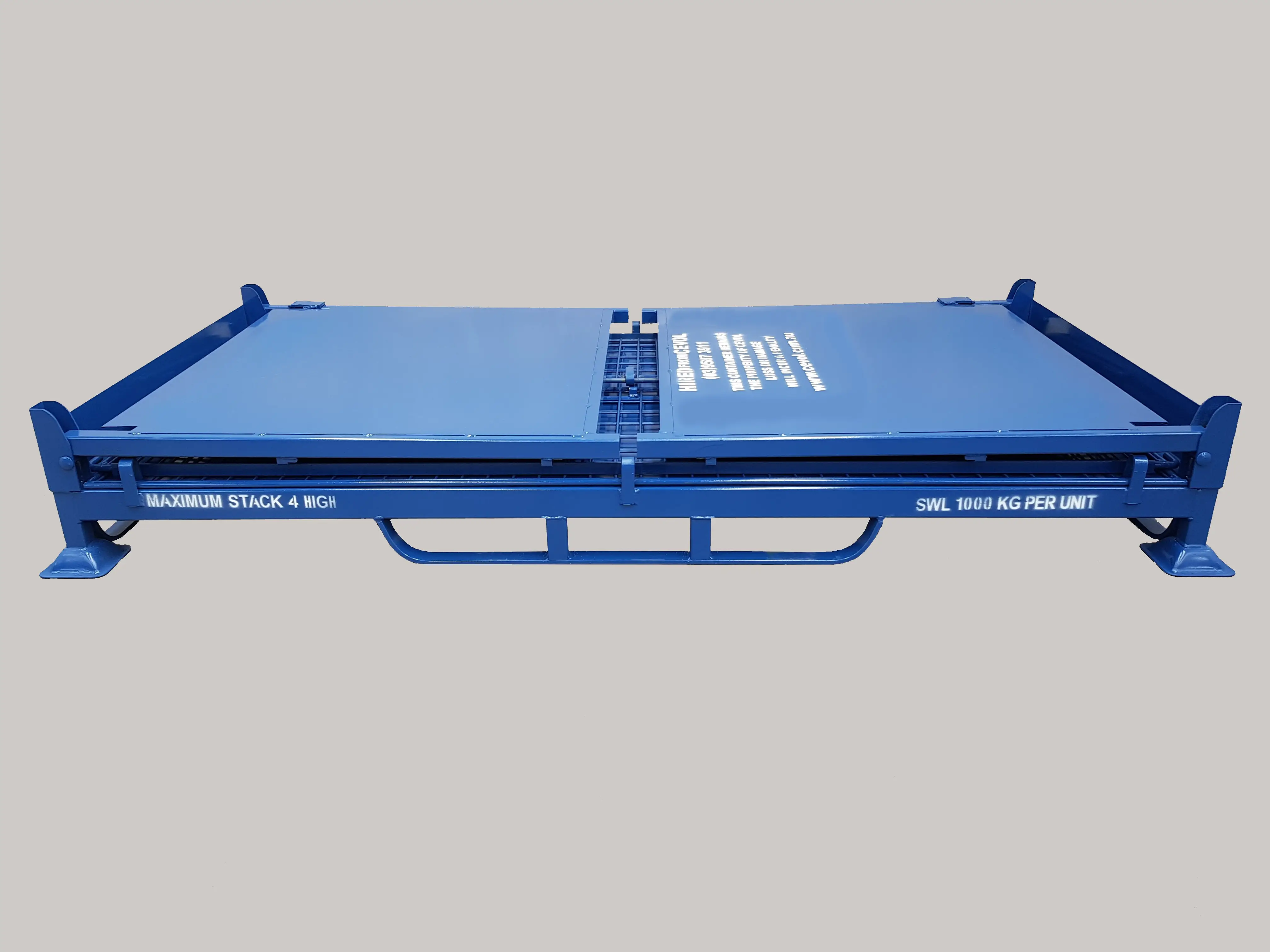

Folded Height
330
Under Base
100
Cubic Capacity
2.3m3
Approx. Mass
190kg (CBM.1R) 220kg (CBS.1R)
Design Specifications
Rated Capacity (NATA) Certified
1000 kg per unit
Stacking Fully Loaded
4 high, static flat
Forking Fully Loaded
1 high from any side
Trucking Fully Loaded
2 high
Stacking Collapsed
20 high, static flat
Forking Collapsed
5 high from any side
Trucking Collapsed
Limited by height

Stillage Assembly

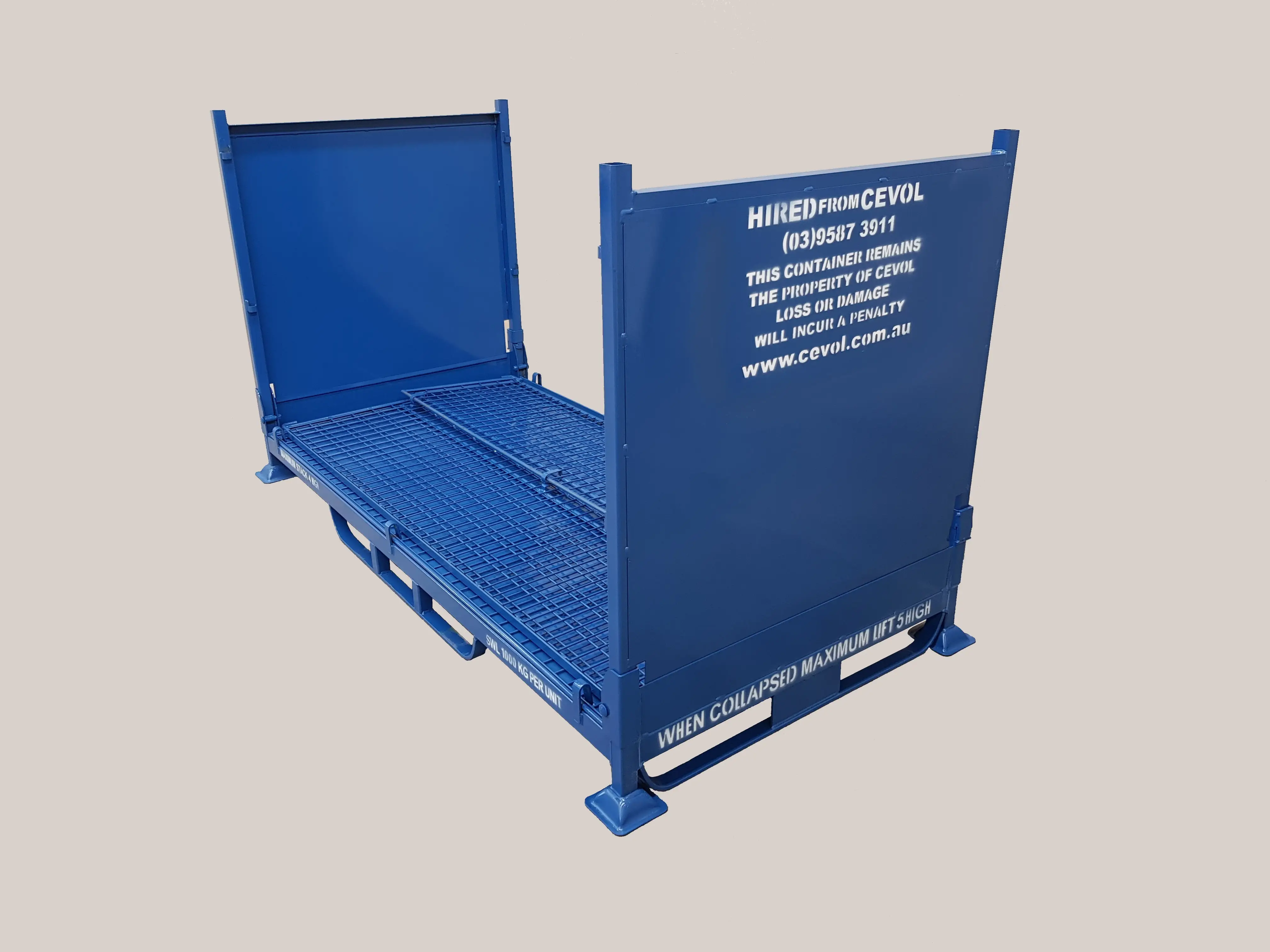

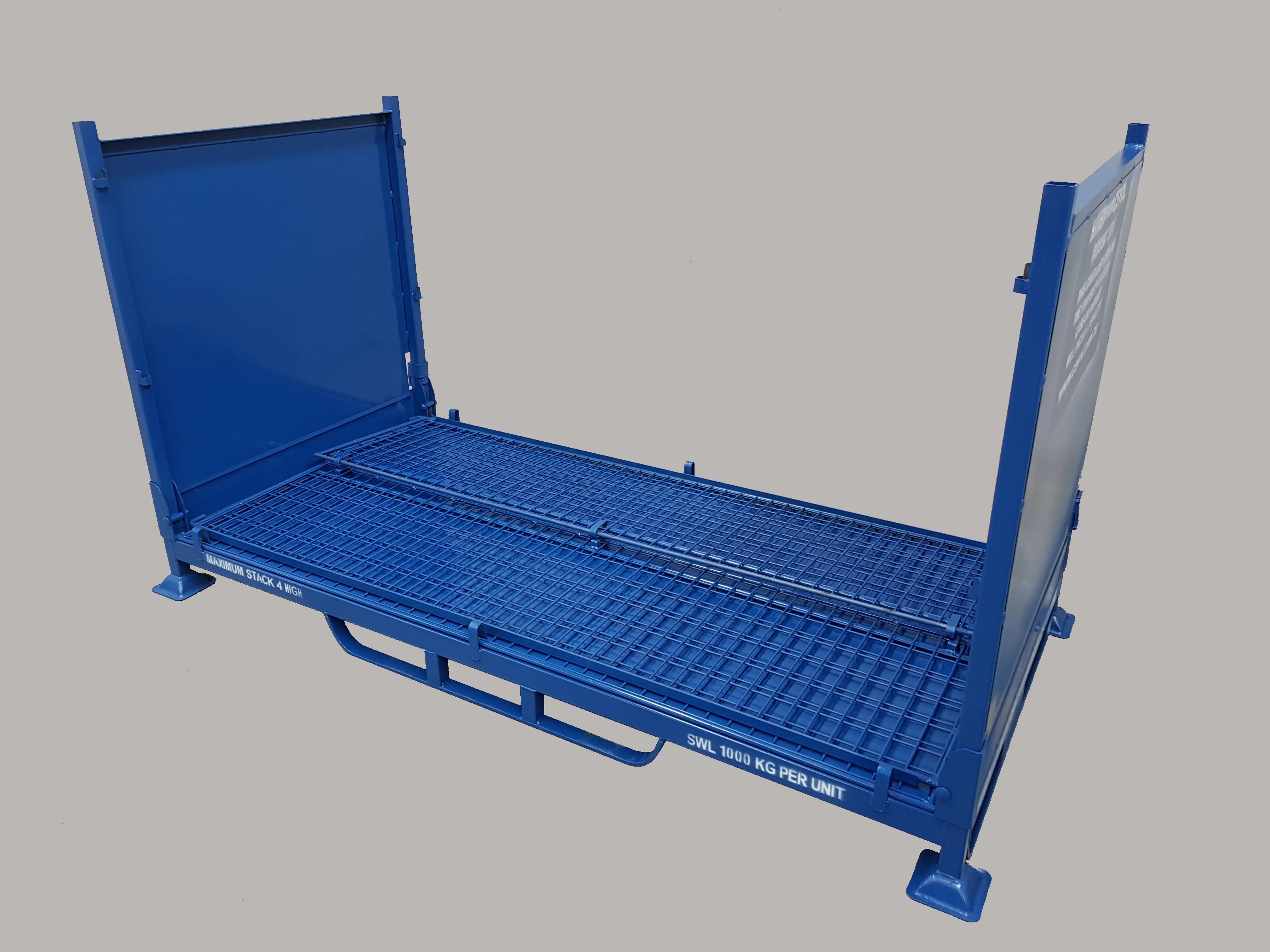

  • Ends: Pull each of the two folding sides to their fully open positions.  If the two ends are not fully open, then erecting the gates becomes difficult.

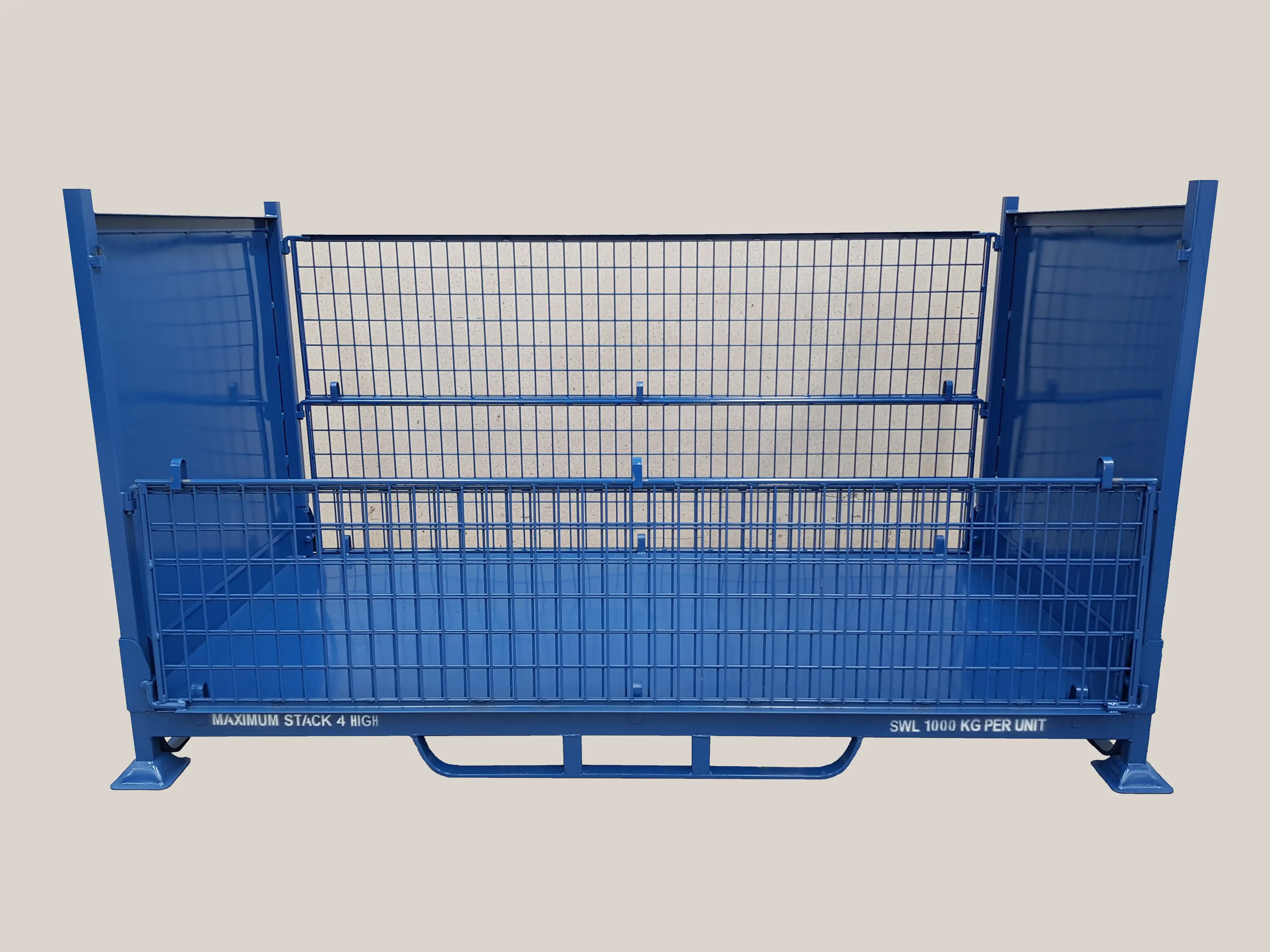

  • Gates: Hold onto the top of one gate and lift all the way to its upward limit.  Locate bottom half gate hooks into bottom catches on each post.  Then locate the top half gate hooks into the top catches on each post.
  • Check Assembly:  When assembly is complete, double check all posts to make sure all gate hooks are located fully.  Visually check entire pallet to make sure it is in safe usable condition.

Stillage Safety Assessment

Before using any stillage, the operator must check that:

  • Pallet feet are not bent or broken
  • Gates fully locate into their catches
  • Rack runners are in safe usable condition
  • Stillage ends are properly attached to the stillage base
  • Nuts & bolts are all tight
  • Posts are not damaged and that stillage can be stacked or stacked onto

General Loading & Trucking of Stillage

  • Always evenly distribute the loading of product into the stillage as best as possible
  • When stacking stillages, make sure the stillage has interlocked properly before removing the forklift
  • Avoid having heavy loads on top of the stack
  • When erect CBM.1R & CBS1R stillages must be loaded long ways across the truck.  Ropes or straps must then pass over the top if the stillage at each end. Stillage gates are not designed to be used as the tie down point

Stillage Damage & Repairs

  • Damaged stillages should be assessed and if deemed to be unsafe, removed from circulation
  • Any time a stillage is removed from circulation, it should be reported to the relevant supervisor
  • Damaged or unsafe stillages are to be returned to Cevol Industries for proper assessment or repair

Operators Guide

Operators are not to exceed any of the design specifications listed above.
Each stillage hired out by Cevol Industries is in a safe usable condition, stenciled with the maximum capacity and stacking height.
Operators are to report any damaged stillage to their supervisor for assessment or return to Cevol Industries.
