Bulk Open Pallet with fixed end frames & Bulk Open Pallet with folding end posts

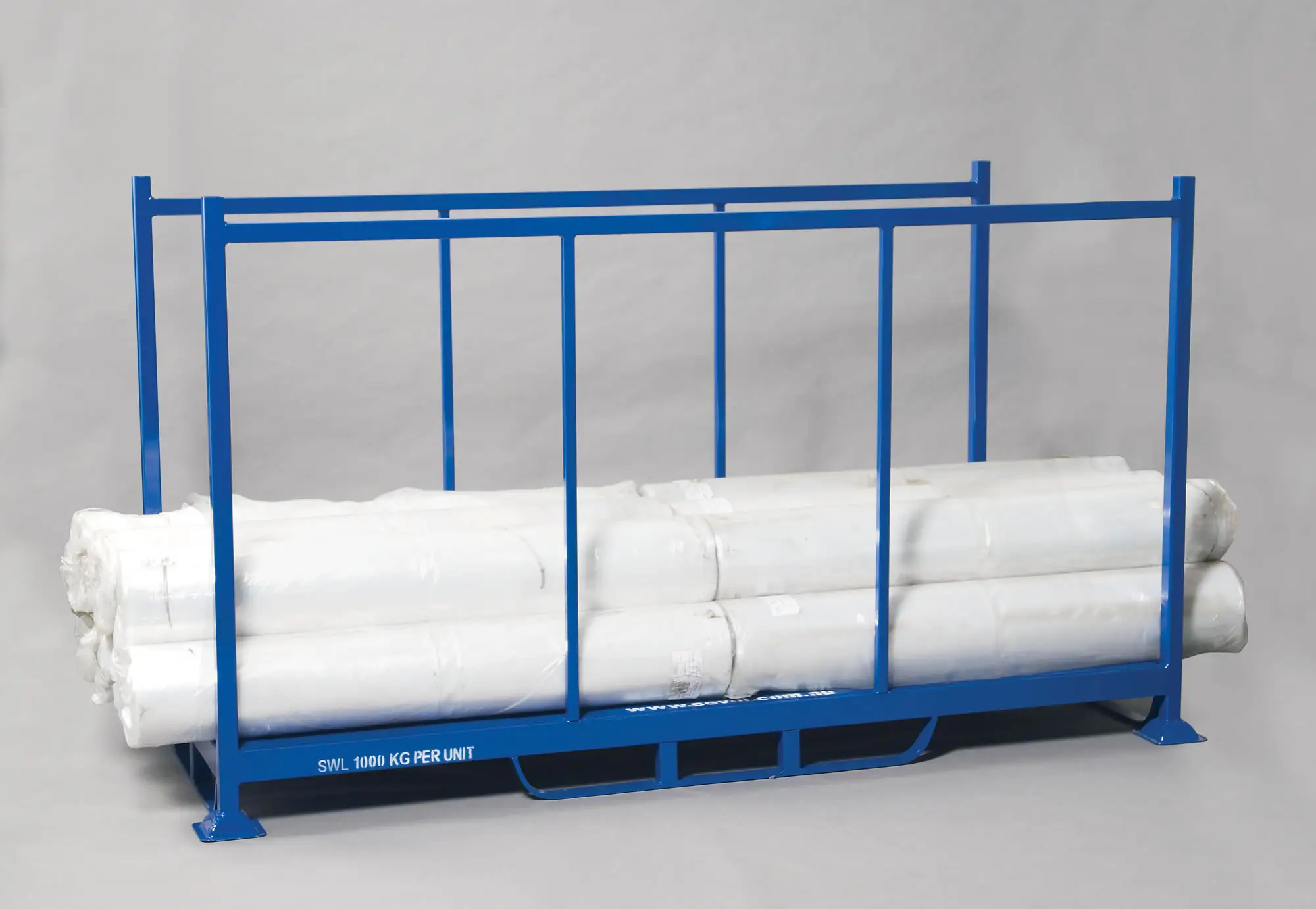

  • BM.1F Pallet with fixed end frames, or BM.1FC with folding end posts, suitable for storage of product in rolls, tubes or bulker bags
  • Useful for easing short term warehousing problems
  • Designed to make fullest use of legal space on tray trucks
Product Manual
Frequently Asked Questions?
Specifications
Base Dimensions
2200 x 1061
Usable Space
2200 x 980
Outside Feet
2292 x 1158
Overall Height
1285
Inside Height
1070
Folded Height
BM.1FC - 330
Under Base
100
Cubic Capacity
2.5m3
Approx. Mass
163kg
Design Specifications
Rated Capacity (NATA) Certified
1000 kg per unit
Stacking Fully Loaded
4 high, static flat
Forking Fully Loaded
1 high from any side
Trucking Fully Loaded
BM.1FC = 1 high, BM.1F = 2 high

Stillage Assembly

  • Ends Assembly: Pull each of the two folding ends to their fully open position
  • Ends Folding: Push post keeper up until it clears the shroud.  Lower end down to base.  Dropping the end repeatedly will damage the stillage and is an OH&S risk to the operators
  • Check Assembly: Make sure each post keeper locates fully over the shroud.  Pulling the end back and forth will help the post keeper to locate firmly.

Stillage Safety Assessment

Before using any stillage the operator must check that:

  • Pallet feet are not bent or broken
  • Rack runners are in safe usable condition
  • Stillage Base is in good condition
  • Posts are not damaged and that stillage can be stacked or stacked onto
  • Post keepers locate firmly

General Loading & Trucking of Stillage

  • Always evenly distribute the loading of product into the stillage as best as possible
  • When stacking stillages, make sure the stillage has interlocked properly before removing the forklift
  • Avoid having heavy loads on top of the stack
  • Open ended stillage. Recommend securing product to stillage before transporting

Stillage Damage & Repairs

  • Damaged stillages should be assessed and if deemed to be unsafe, removed from circulation
  • Any time a stillage is removed from circulation, it should be reported to the relevant supervisor
  • Damaged or unsafe stillages are to be returned to Cevol Industries for proper assessment or repair

Operators Guide

Operators are not to exceed any of the design specifications listed above.
Each stillage hired out by Cevol Industries is in a safe usable condition, stenciled with the maximum capacity and stacking height.
Operators are to report any damaged stillage to their supervisor for assessment or return to Cevol Industries.
