Home > Pallet Range > Mesh Pallets > Bulk Steel Mesh Stillage / Pallet
BMI Bulk Steel Mesh Pallet & Bulk Sheet Stillage with half drop gate

BM.1

Back

Enquire
Hire

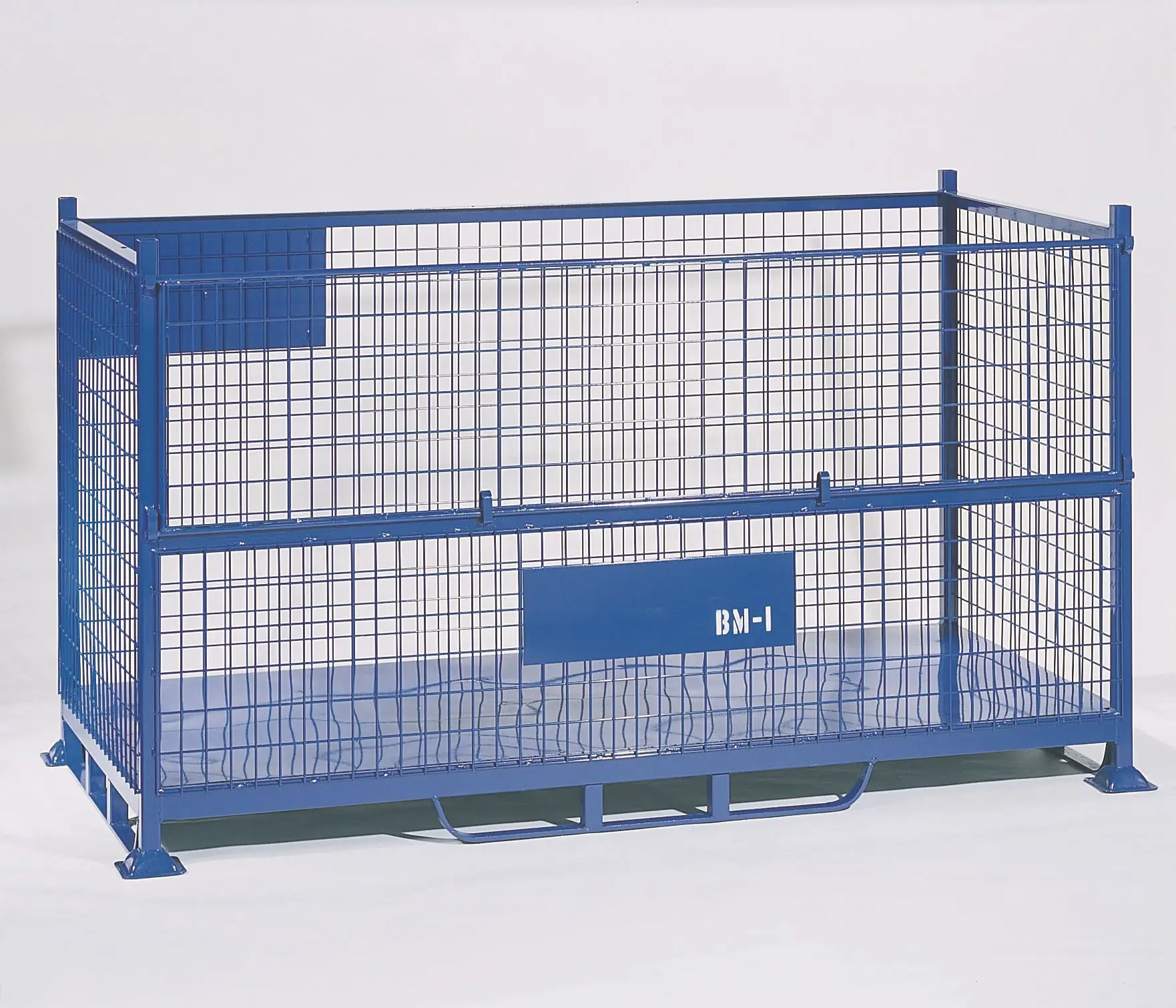

Bulk Steel Mesh Stillage / Pallet

Fixed post pallet with half drop front gate.

Designed to make fullest use of legal space on tray trucks.

Can be made with a lockable security lid.

Available in sheet and mesh.

Pallets are interstackable.

Specifications
Base Dimensions
2200 x 1061
Usable Space
2200 x 980
Outside Feet
2292 x 1158
Overall Height
1285
Inside Height
1070
Under Base
100
Cubic Capacity
2.5m3
Approx. Mass
180kg (BM.1) 225kg (BS.1)
Design Specifications
Rated Capacity (NATA) Certified
1000 kg per unit
Stacking Fully Loaded
4 high, static flat
Forking Fully Loaded
1 high from any side
Trucking Fully Loaded
2 high

Gates Operation

  • To Open:  Hold on to the top of the gate and lift all the way to its upward limit.  Swing gate outward and down into open position.
  • To Close:  Swing gate upward and locate into top gate catches

Stillage Safety Assessment

Before using any stillage the operator must check that:
  • Pallet feet are not bent or broken
  • Gate fully locates into catches
  • Rack runners are in safe usable condition
  • Stillage Base is in good condition
  • Posts are not damaged and that stillage can be stacked or stacked onto

General Loading & Trucking of Stillage

  • Always evenly distribute the loading of product into the stillage as best as possible
  • When stacking stillages, make sure the stillage has interlocked properly before removing the forklift
  • Avoid having heavy loads on top of the stack

Stillage Damage & Repairs

  • Damaged stillages should be assessed and if deemed to be unsafe, removed from circulation
  • Any time a stillage is removed from circulation, it should be reported to the relevant supervisor
  • Damaged or unsafe stillages are to be returned to Cevol Industries for proper assessment or repair

Operators Guide

Operators are not to exceed any of the design specifications listed above.
Each stillage hired out by Cevol Industries is in a safe usable condition, stenciled with the maximum capacity and stacking height.
Operators are to report any damaged stillage to their supervisor for assessment or return to Cevol Industries.
