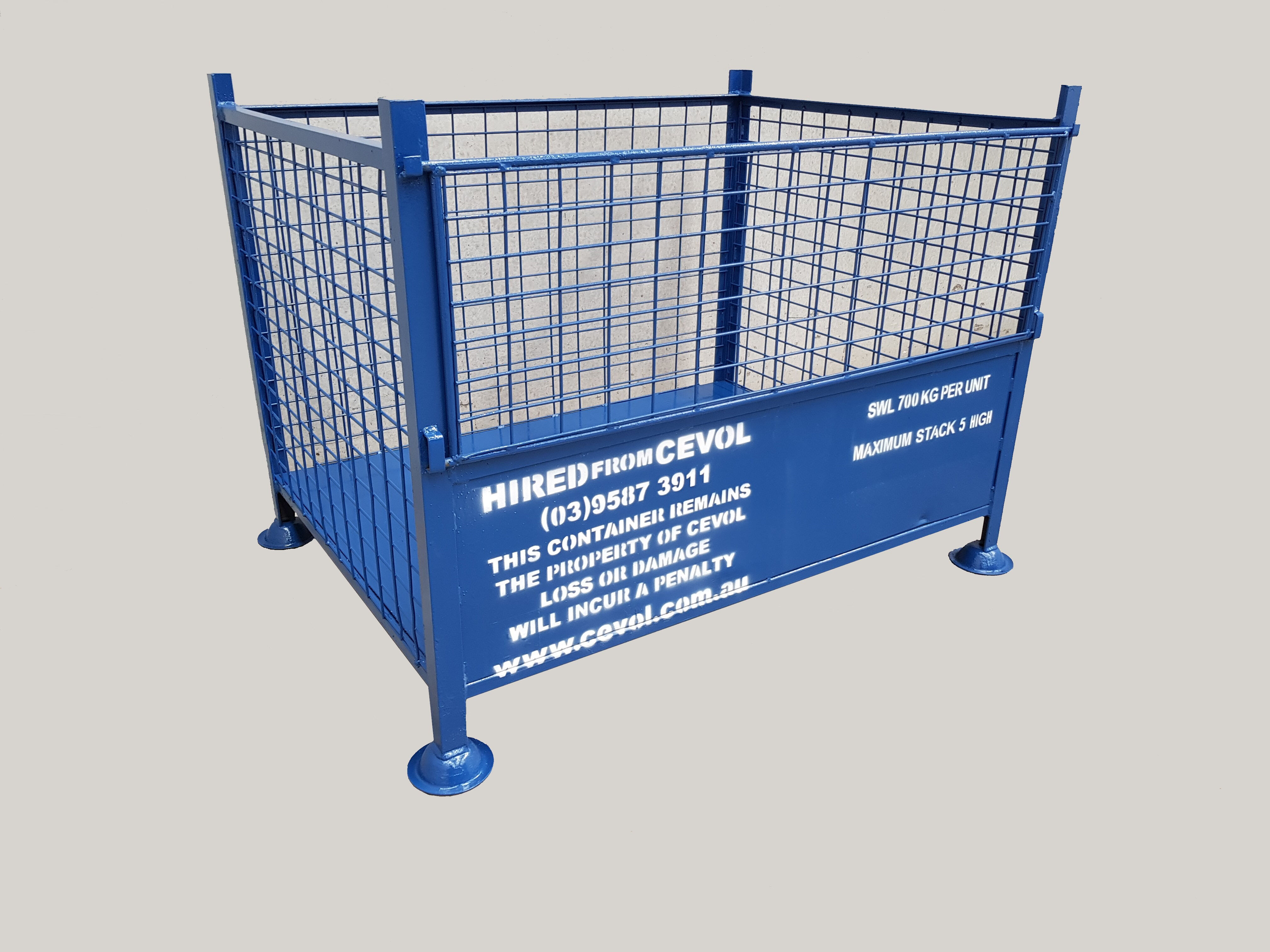

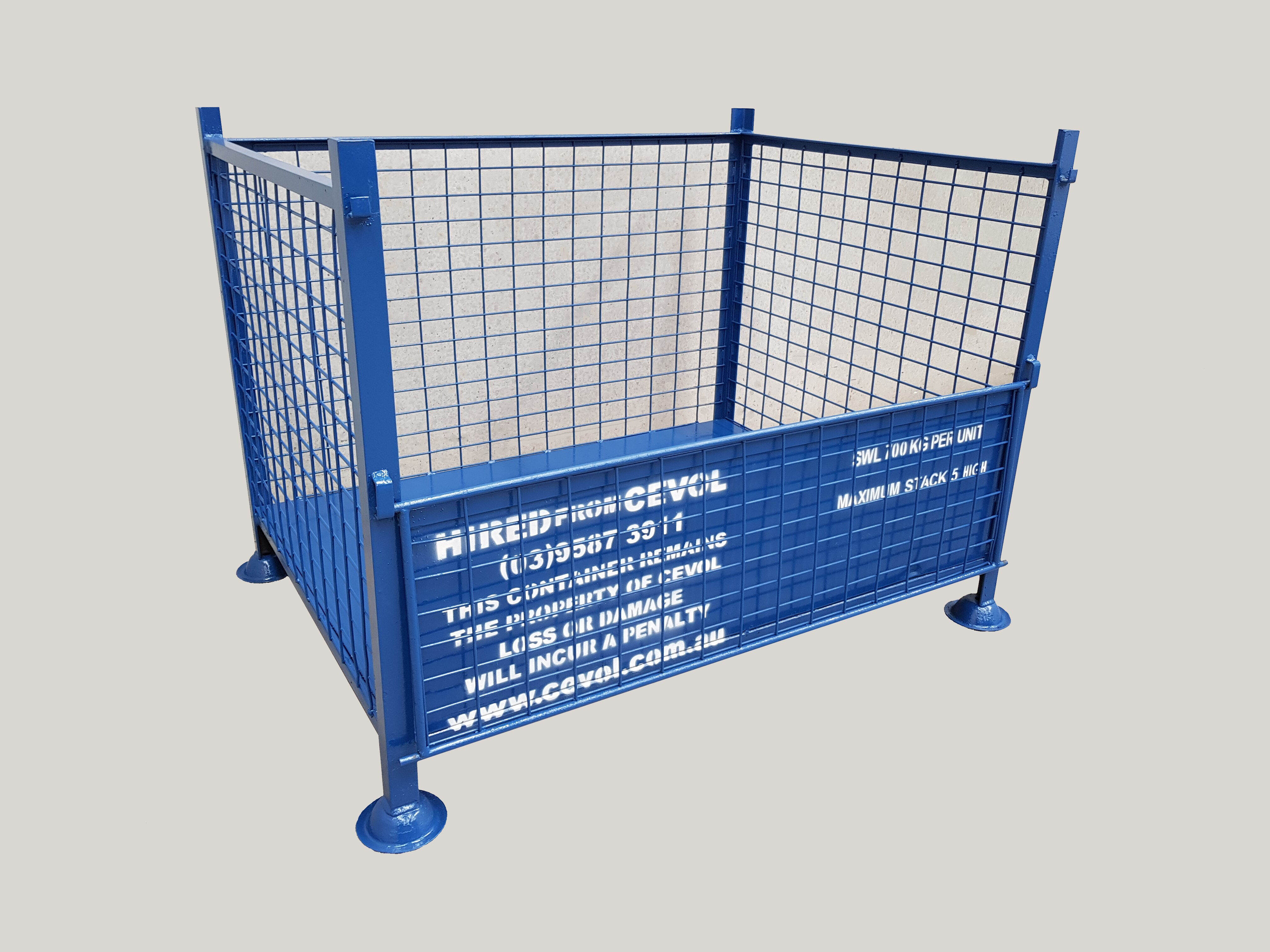

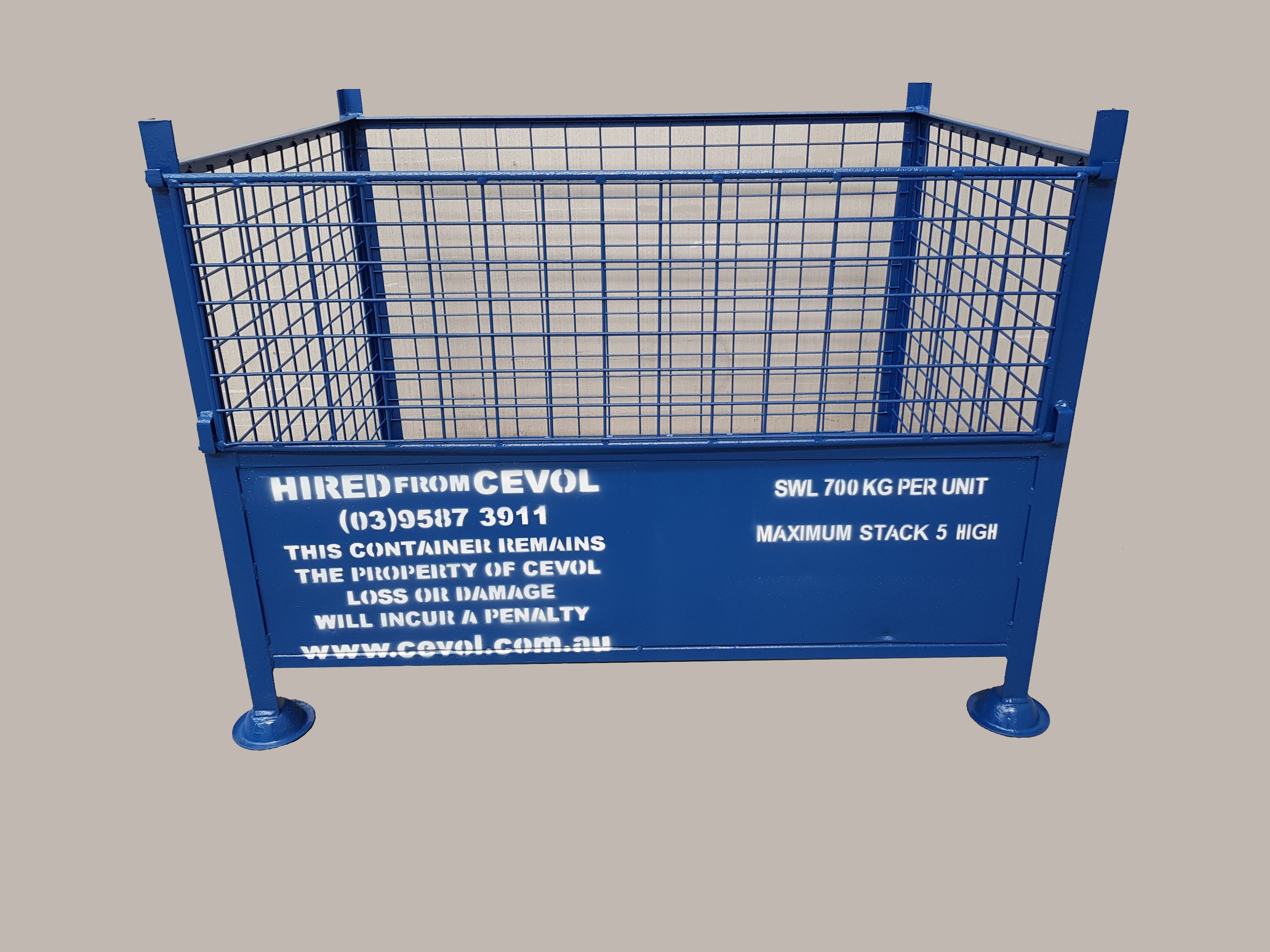

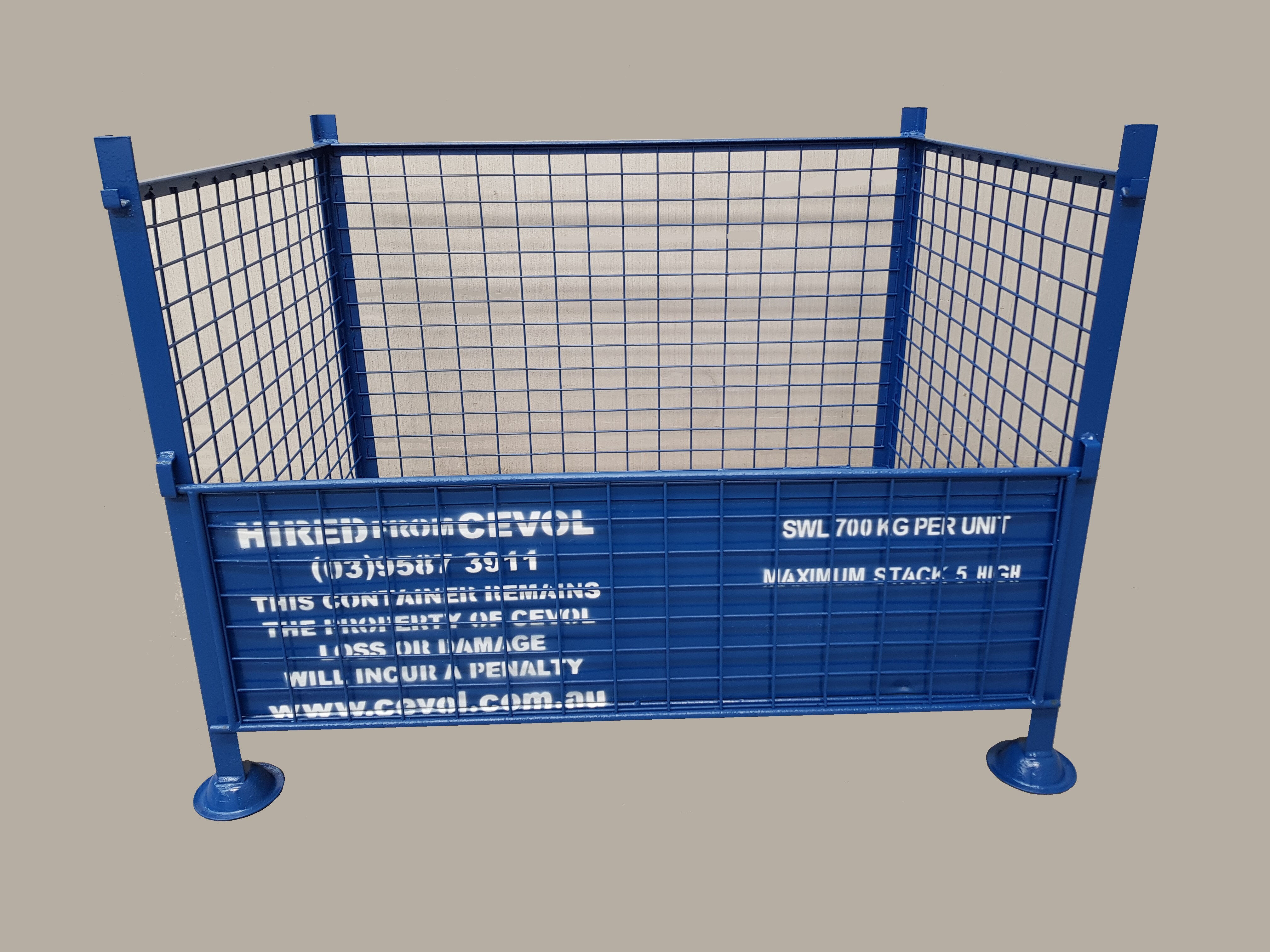

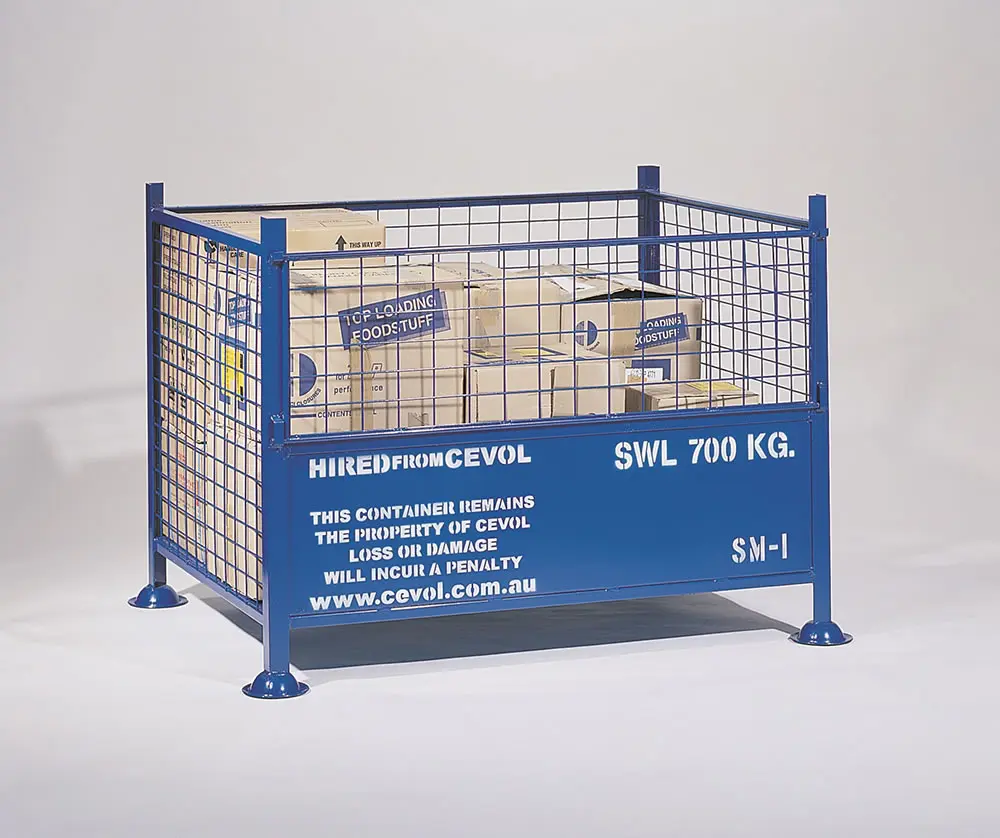

All Mesh Pallet with half drop front gate

This is our first and most popular pallet and is affectionately known as the Jack of all trades also adapted SM.1R to be used in pallet racking as well as self stacking.

Product Manual
Frequently Asked Questions?
Specifications
Base Dimensions
1220 x 915
Usable Space
1200 x 885
Outside Feet
1325 x 1020
Overall Height
SM.1 - 940 SM.1R - 970
Inside Height
735
Under Base
SM.1 - 120 SM.1R - 105
Cubic Capacity
0.83m3
Approx. Mass
SM.1 - 65kg SM.1R 68kg
Design Specifications
Rated Capacity (NATA) Certified
700kg per unit
Stacking Fully Loaded
5 high, static flat
Forking Fully Loaded
1 high from any side
Trucking Fully Loaded
2 high

Gates Operation

  • To Open: Hold on to the top of the gate and lift all the way to its upward limit.  Swing gate outward and down into open position.
  • To Close: Swing gate upward and locate into top gate catches

Stillage Safety Assessment

Before using any stillage the operator must check that:
  • Stacking flats and top rails are not bent or broken
  • Gate fully locates into catches
  • Stillage base is in good condition
  • Posts are not damaged and that stillage can be stacked or stacked onto

General Loading & Trucking of Stillage

  • Always evenly distribute the loading of product into the stillage as best as possible
  • When stacking stillages, make sure the stillage has interlocked properly before removing the forklift
  • Avoid having heavy loads on top of the stack
  • Pallet has no fork tyne guides and can slide around on fork

Stillage Damage & Repairs

  • Damaged stillages should be assessed and if deemed to be unsafe, removed from circulation
  • Any time a stillage is removed from circulation, it should be reported to the relevant supervisor
  • Damaged or unsafe stillages are to be returned to Cevol Industries for proper assessment or repair

Operators Guide

Operators are not to exceed any of the design specifications listed above.
Each stillage hired out by Cevol Industries is in a safe usable condition, stenciled with the maximum capacity and stacking height.
Operators are to report any damaged stillage to their supervisor for assessment or return to Cevol Industries.
