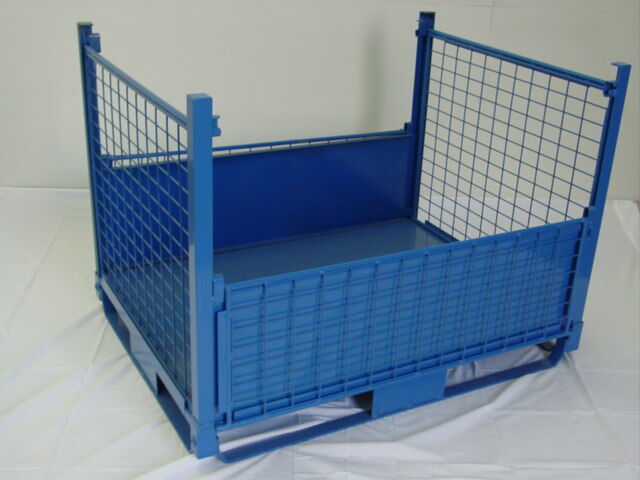

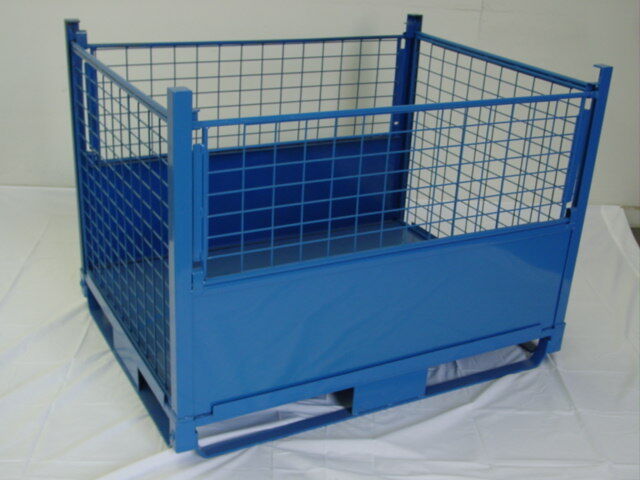

All Mesh Pallet with 2 half drop gates. Demountable

  • A new approach to storage stillages & their maintenance
  • The end of foot damage
  • No feet ensures easy loading on trucks
  • No feet ensure no truck curtain damage
  • Improved stacking
  • Ability to store in pallet racking
  • 1000 kg. SWL x 5 high
  • Tine enclosed fork lifting on four sides
  • Can be used on belt or roller conveyor systems
  • Access from both sides of pallet
  • Gates recessed to avoid damage to catches and gate
  • Repair by replacement of damaged parts ensures:
  • Faster turnaround on repairs and returns
  • Elimination of major labour charges
  • 100% restoration
Product Manual
Frequently Asked Questions?
Specifications
Base Dimensions
1242 x 937
Usable Space
1200 x 915
Overall Height
922
Inside Height
735
Under Base
104
Cubic Capacity
.83m3
Approx. Mass
90kg
Design Specifications
Rated Capacity (NATA) Certified
1000kg per unit stacked 5 high

Stillage Damage & Repairs

  • Damaged stillages should be assessed and if deemed to be unsafe, removed from circulation
  • Any time a stillage is removed from circulation, it should be reported to the relevant supervisor
  • Damaged or unsafe stillages are to be returned to Cevol Industries for proper assessment or repair

Operators Guide

Operators are not to exceed any of the design specifications listed above.
Each stillage hired out by Cevol Industries is in a safe usable condition, stenciled with the maximum capacity and stacking height.
Operators are to report any damaged stillage to their supervisor for assessment or return to Cevol Industries.
